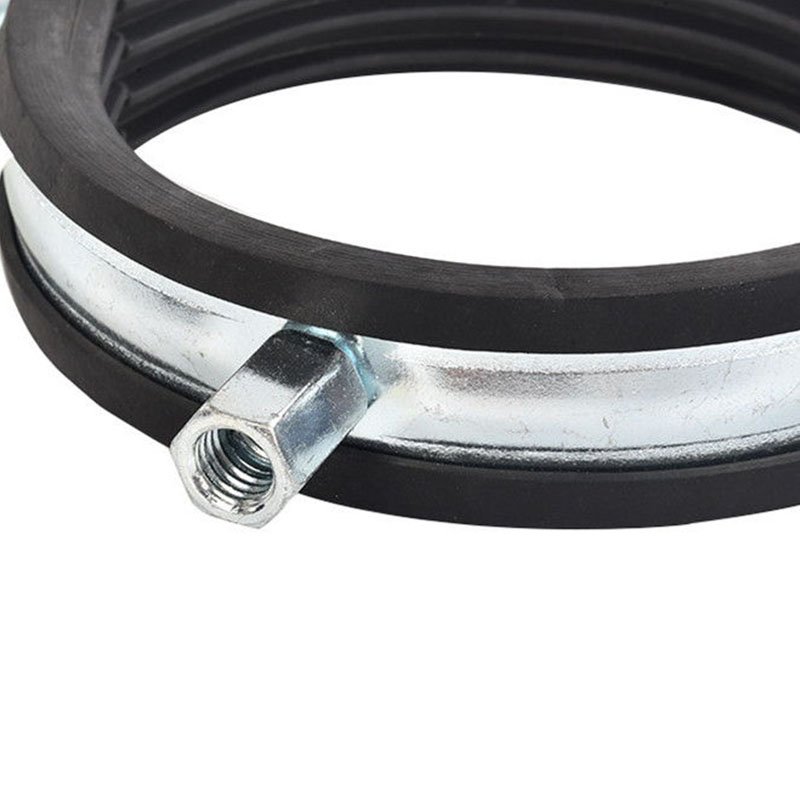

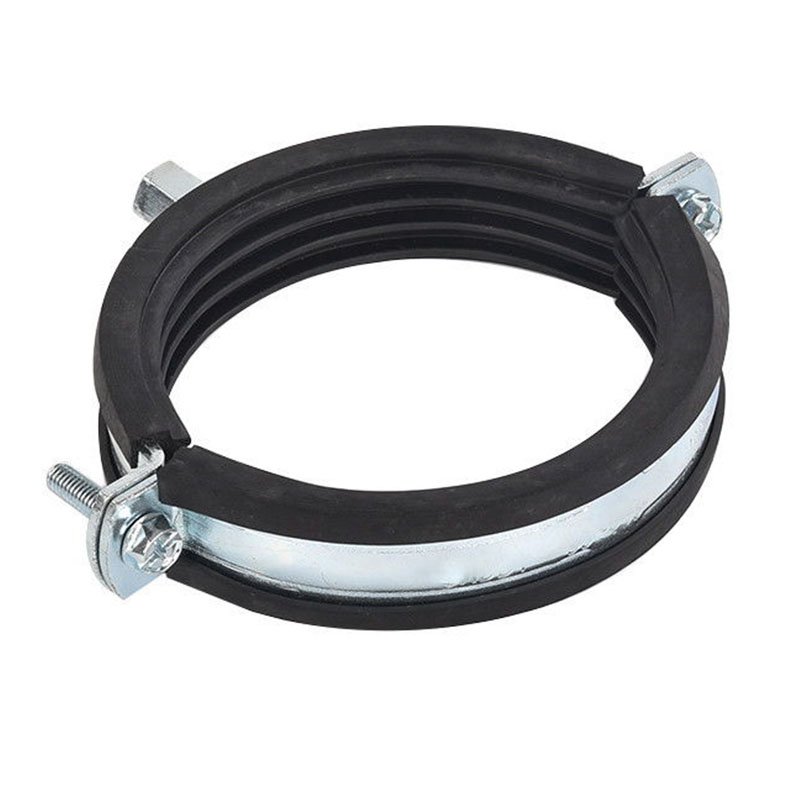

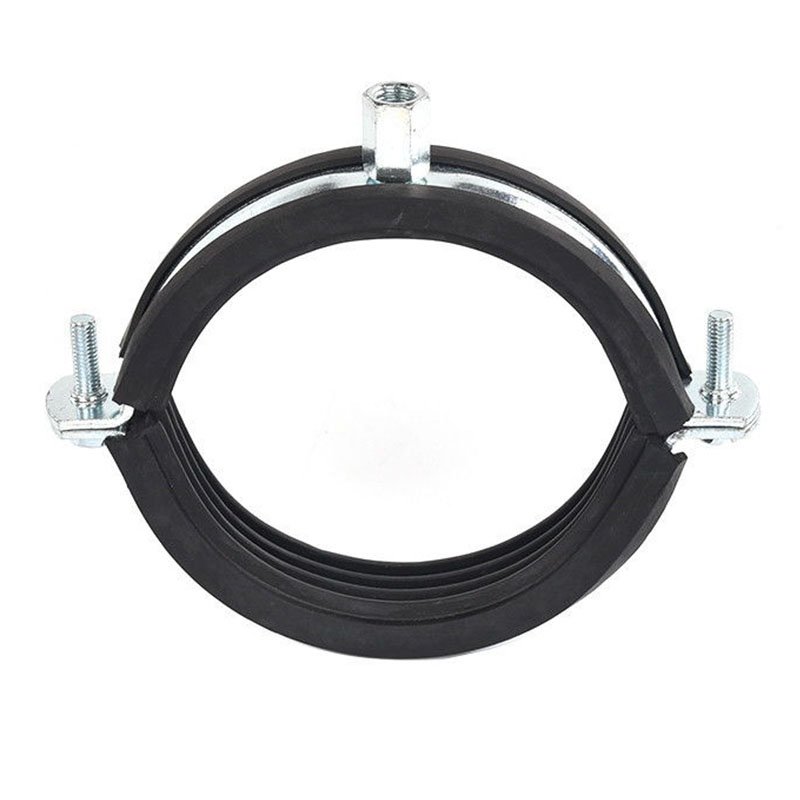

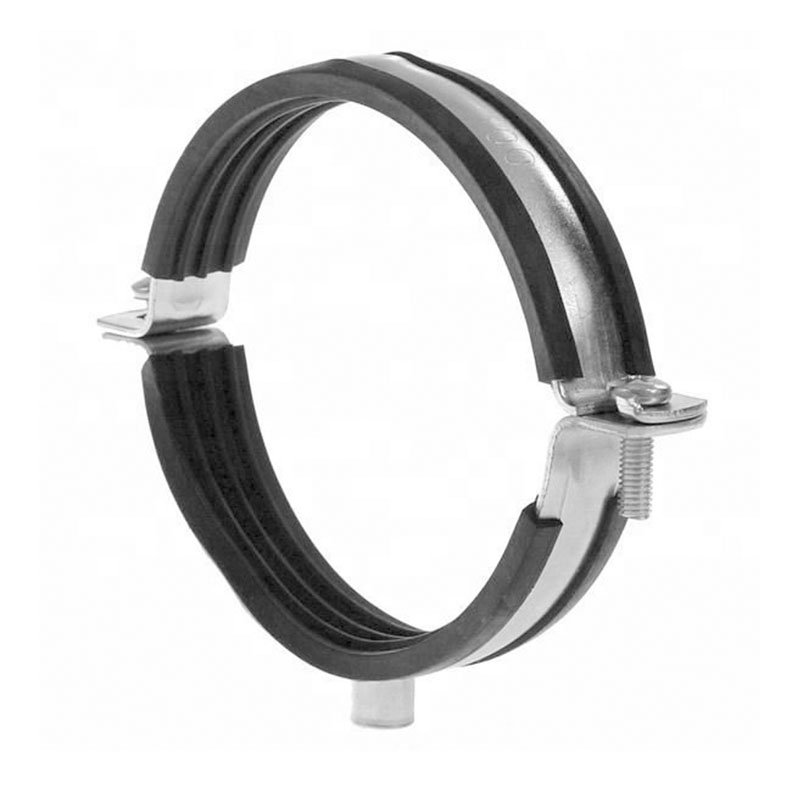

Item name: Pipe Clamp (hanging clamp)
Material: galvanized steel, stainless steel(201, 301, 304)
Standard: EN Standard
Certificates: ISO/CE
Size: All / Different Size Available
Sample: Free
Package: Carton/Gunny bag/Pallet / As customer’s requirements.
DESCRIPTION
● Item name: American worm type clamp
● Material: galvanized steel, stainless steel(201, 301, 304)
● Standard: EN Standard
TABLE PARAMETER
| Outer | Rod | Width | Thickness | Screw | Screw | Static | ||
| Diameter | Pip | NB/DN | Size | Diameter | Length | Load | ||
| Size | ||||||||
| 14 – 18 mm | 3/8″ | 10 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 19 – 23 mm | 1/2″ | 15 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 24 – 28 mm | 3/4″ | 20 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 29 – 33 mm | 1″ | 25 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 33 – 37 mm | – | – | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 40 – 45 mm | 1 1/4″ | 32 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 47 – 52 mm | 1 1/2″ | 40 | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 53 – 58 mm | – | – | M8, M10 | 30 mm | 2.5 mm | M6 | 30 mm | 2,000 N |
| 60 – 65 mm | 2″ | 50 | M8, M10 | 30 mm | 2.5 mm | M8 | 40 mm | 2,000 N |
| 67 – 72 mm | – | – | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 2,000 N |
| 73 – 78 mm | 2 1/2″ | 65 | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 79 – 85 mm | – | – | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 88 – 93 mm | 3″ | 80 | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 94 – 99 mm | – | – | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 100 –106 mm | – | – | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 108 –116 mm | 4″ | 100 | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
| 117 –123 mm | – | – | M10, M12 | 30 mm | 3.0 mm | M8 | 40 mm | 3,500 N |
